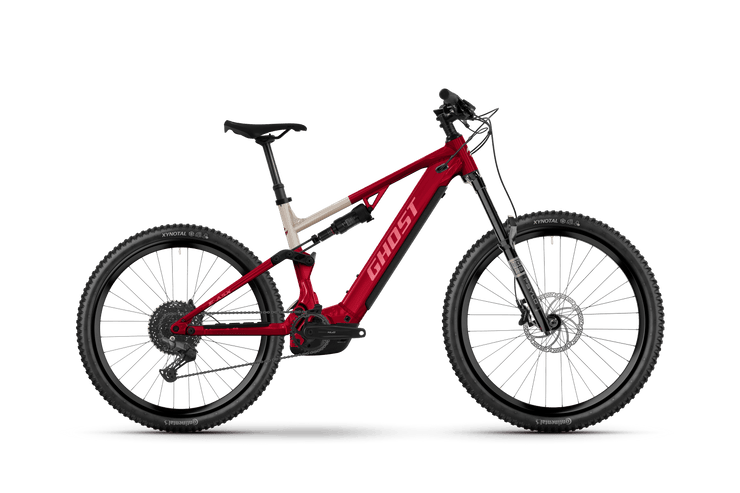

GHOST E-ASX ESSENTIAL 2026

If you want to blast some trails without blasting your wallet, the E-ASX 160 Essential is the right choice for you! The E-ASX 160 Essential features a sophisticated aluminium frame, a snappy Bosch motor and a solid 160 mm travel. This e-mountain bike for touring and trails is the perfect companion for demanding descents and challenging uphills. The battery is elegantly integrated into the frame and the MX wheel concept provides additional confidence on steep downhills.

• Bottom bracket drop [mm]: 9.9 mm
• Chain stay length [mm]: 450 mm
• Fork total length [mm]: 44 mm
• Head tube angle: 65 degrees
• Head tube length [mm]: 125 mm
• Reach [mm]: 480 mm
• Stack [mm]: 646 mm
• Stand over height [mm]: 796 mm
• Seat tube angle: 77 degrees
• Seat tube length [mm]: 455 mm
• Top tube length [mm]: 625 mm
• Wheelbase [mm]: 1266 mm

• Brake Front Brand: Tektro
• Brake Front Kind: HD-M535, 4 pistons, resin pad, 203 mm
• Brake Front Mount: Post Mount
• Brake Front Type: Hydraulic Disc brake
• Brake Rear Brand: Tektro
• Brake Rear Kind: HD-M535, 4 pistons, resin pad, 203 mm
• Brake Rear Mount: Post Mount
• Brake Rear Type: Hydraulic Disc brake
• Brake Lever Brand: Tektro
• Brake Lever Kind: HD-M535-BL
• Brake Rotor Brand: Tektro
• Brake Rotor Kind: TR203-45 203 mm, Centerlock

• Cassette Brand: Shimano
• Cassette Kind: CUES CS-LG300-10, HG
• Cassette Teeth: 11-48T
• Chain Brand: Shimano
• Chain Guide Brand: MRP
• Chain Guide Kind: 1x for Bosch BDU38 32-36T
• Chain Kind: CN-LG500 9-11s, LINKGLIDE
• Crank Arm length: 165
• Crankset Brand: XLC
• Crankset Kind: CR-E40 DM Chainring BDU38 + CR-E18 Crankarms
• Crankset Teeth: 34T
• Crankset Type: single
• Derailleur Hanger Brand: Glory Wheel
• Derailleur Hanger Kind: UDH
• Derailleur Rear Brand: Shimano
• Derailleur Rear Kind: CUES RD-U6000 10/11s, Shadow+
• Gear Brand: Shimano
• Gear Type: Derailleur
• Pedal Brand: XLC
• Pedal Inclusive: Yes
• Pedal Kind: Flat Pedal PD-M29 w/ Reflector + integrated Pins
• Shifter Right Brand: Shimano
• Shifter Right Kind: CUES SL-U6000-10R, Rapidfire+
• Shifter Right Type: Triggershift

• Battery Brand: Bosch
• Battery Capacity: 600 Wh
• Battery Kind: InTube 600 Wh
• Battery Location: Powertube
• Charger Brand: Bosch
• Charger Kind: Charger 4A 220-240V
• Display Brand: Bosch
• Display Kind: Kiox 300 + LED Remote
• Motor Brand: Bosch
• Motor Torque [nm]: 85 Nm
• Motor Kind: Performance Line CX
• Motor Location: Center

• Framesize: 46 cm
• Framesize Convection: L
• Max loadable weight (KG): 150 kg
• Front Fork Brand: Rockshox
• Front Fork Kind: Psylo Silver RC, Crown Adjust, Solo Air, 160 mm
• Front Fork Type: Suspension
• Frame Kind: HIGH
• Shock Brand: Rockshox
• Shock Kind: Deluxe Select R 210x55mm, DebonAir+
• Type kickstand mount: KSA18
• Suspension Type: Fully
• Travel Front: 160 mm
• Travel Rear: 150 mm

• Handgrip Brand: XLC
• Grip Kind: MTB Grip Set VLG-1751D2
• Handlebar Brand: XLC
• Handlebar Diameter: 35 mm
• Handlebar Kind: HB-M34, Dia. 35 mm, Rise: 20 mm, backsweep 9°
• Handlebar Material: Aluminium
• Handlebar Rise: 20
• Handlebar Type: Riser Bar
• Handlebar Width: 800 mm
• Headset Brand: Acros
• Headset Kind: Blocklock 120° Tapered ZS56/ZS56
• Headset Type: Semi-integrated
• Saddle Brand: XLC
• Saddle Kind: Sport Comfort SA-S11 Steel Rail 155 mm
• Seatpost Brand: XLC
• Seatpost Kind: Dropper SP-T21, Dia. 34.9 mm, Travel: 200 mm
• Seatpost Length: 555 mm
• Seatpost Material: Aluminium
• Seatpost Travel (mm): 200 mm
• Seatpost Type: Dropperpost
• Stem Brand: XLC
• Stem Kind: ST-M50, Dia. 35 mm, L: 50 mm, A-Head
• Stem Length: 50 mm
