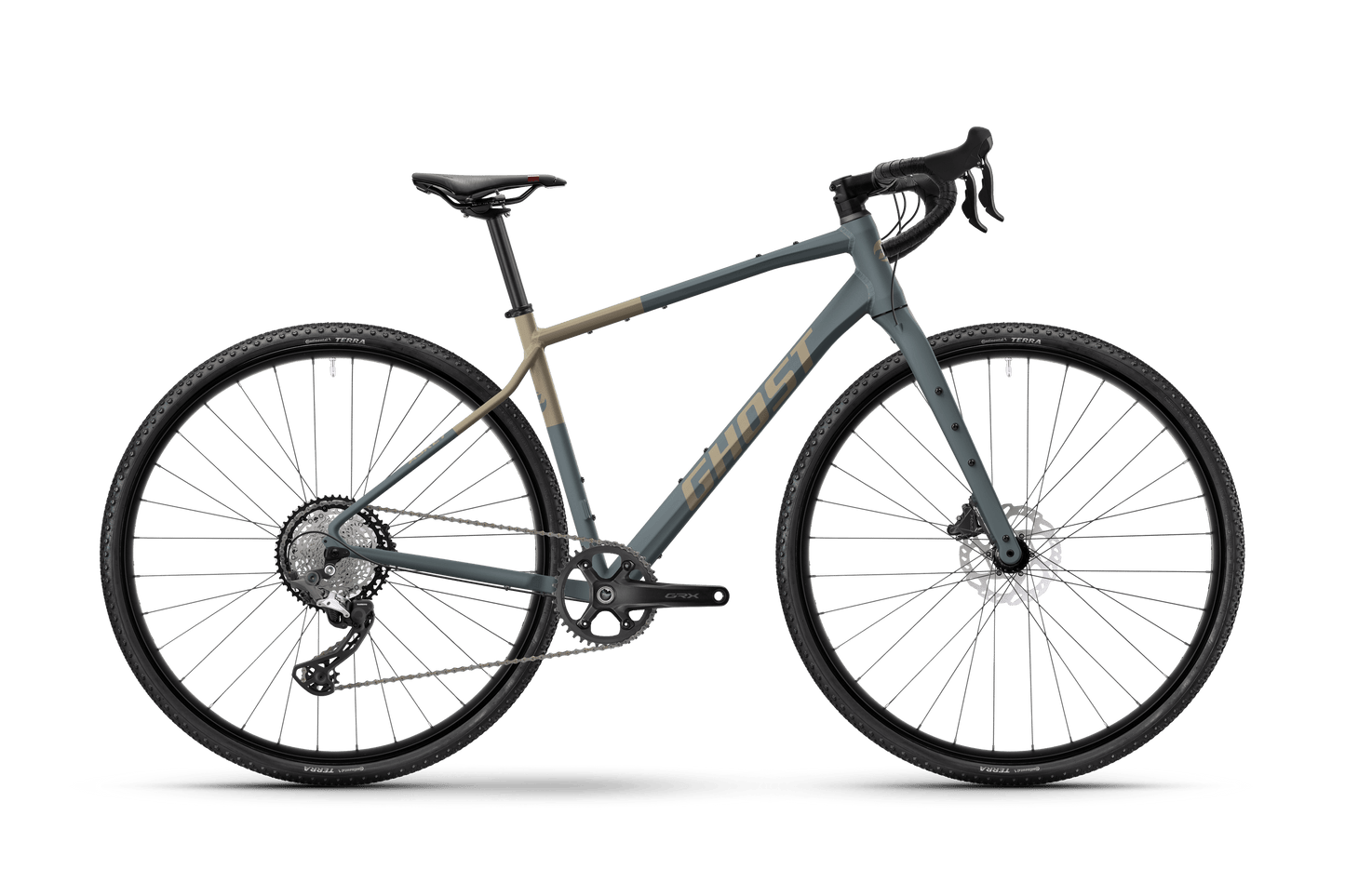

GHOST ASKET 2026
Regular price
£1,399.00
Size
Description
Our entry-level gravel bike: with its sturdy aluminium frame, this is the perfect starting point for
anyone looking to venture onto gravel roads and forest trails. If you have even bigger ambitions,
you will be impressed with the bikepacking mounts, which make attaching panniers a breeze. And
if you want to benefit from the power transfer and comfort of a gravel bike during everyday riding,
mudguards and stands can be easily mounted in just a few steps.
■■ Alloy Frame
■■ Carbon Fork
■■ Shimano GRX BR-RX400 Hydraulic Brakes
■■ Shimano GRX ST-RX600 Shift Brake Levers
■■ Shimano GRX RD-RX810 Rear Derailleur
Specification
Bike Geometry
-
Bottom bracket drop [mm]:
- · 71.5 mm
- · 66.5 mm
- · 61.5 mm
- Chain stay length [mm]: 440 mm
-
Head tube angle:
- · 69.8 degrees
- · 70.1 degrees
- · 70.4 degrees
- · 70.7 degrees
-
Head tube length [mm]:
- · 130 mm
- · 160 mm
- · 190 mm
- · 220 mm
-
Reach [mm]:
- · 392 mm
- · 407 mm
- · 427 mm
- · 444 mm
-
Stack [mm]:
- · 587 mm
- · 612 mm
- · 641 mm
- · 666 mm
-
Stand over height [mm]:
- · 710 mm
- · 750 mm
- · 780 mm
- · 820 mm
-
Seat tube angle:
- · 73.7 degrees
- · 73.6 degrees
-
Seat tube length [mm]:
- · 450 mm
- · 485 mm
- · 525 mm
- · 560 mm
-
Top tube length [mm]:
- · 563 mm
- · 586 mm
- · 615 mm
- · 639 mm
-
Wheelbase [mm]:
- · 1076 mm
- · 1098 mm
- · 1126 mm
- · 1150 mm
Brake system
- Brake Front Brand: Shimano
- Brake Front Kind: GRX BR-RX400, 2 pistons, resin pad, 160 mm
- Brake Front Mount: Flat Mount
- Brake Front Type: Hydraulic Disc brake
- Brake Rear Brand: Shimano
- Brake Rear Kind: GRX BR-RX400, 2 pistons, resin pad, 160 mm
- Brake Rear Mount: Flat Mount
- Brake Rear Type: Hydraulic Disc brake
- Brake Lever Brand: Shimano
- Brake Lever Kind: GRX ST-RX600 Shift-Brake-Lever
- Brake Rotor Brand: Shimano
- Brake Rotor Kind: SM-RT64 160 mm, Centerlock
Drivetrain
- Bottom Bracket Brand: Shimano
- Bottom Bracket Kind: Tiagra BB-RS501 68/70 mm
- Bottom Bracket Type: BSA
- Cassette Brand: Shimano
- Cassette Kind: GRX CS-HG700-11, HG
- Cassette Teeth: 11-34T
- Chain Brand: Shimano
- Chain Kind: GRX CN-HG601 11s, SIL-TECH
-
Crank Arm length:
- · 170
- · 175
- · 172.5
- Crankset Brand: Shimano
- Crankset Kind: GRX FC-RX600-1, 2-Piece Crankset
- Crankset Teeth: 40T
- Crankset Type: single
- Derailleur Hanger Brand: Ghost
- Derailleur Hanger Kind: FRHG0065 Hanger Set
- Derailleur Rear Brand: Shimano
- Derailleur Rear Kind: GRX RD-RX810 11s, Shadow+
- Gear Brand: Shimano
- Gear Type: Derailleur
- Pedal Brand: XLC
- Pedal Inclusive: Yes
- Pedal Kind: Flat Pedal PD-M29 w/ Reflector + integrated Pins
- Shifter Right Brand: Shimano
- Shifter Right Kind: GRX ST-RX600-R, Dual Control Lever
- Shifter Right Type: Shift-brake lever
Frame and more
-
Framesize:
- · 45 cm
- · 49 cm
- · 53 cm
- · 56 cm
-
Framesize Convection:
- · S
- · M
- · L
- · XL
- Max loadable weight (KG): 120 kg
- Front Fork Brand: Ghost
- Front Fork Kind: Carbon
- Front Fork Type: Non Suspension
- Frame Kind: HIGH
- Type kickstand mount: KSA40
Handlebar and Saddle
- Handgrip Brand: XLC
- Grip Kind: Elastomer Tape Gray, 200x3 cm w/VLP-137
- Handlebar Brand: XLC
- Handlebar Diameter: 31.8 mm
- Handlebar Kind: Gravel Bar JD-RA128A, Dia. 31.8 mm
- Handlebar Type: Drop bar
-
Handlebar Width:
- · 420 mm
- · 440 mm
- · 460 mm
- Headset Brand: Acros
- Headset Kind: ZS44/ZS56
- Headset Type: Semi-integrated
- Saddle Brand: XLC
- Saddle Kind: Sport SA-S10 143 mm
- Seatpost Brand: XLC
- Seatpost Kind: SP-R30, Dia. 27.2 mm, L: 350 mm
- Seatpost Type: Non Suspension
- Stem Brand: XLC
- Stem Kind: ST-M34, Dia. 31.8 mm, L: 60 mm, +/-7°, A-Head
- Stem Length: 60 mm
Wheels and wheel components
- Hub Front Brand: XLC
- Hub Front Kind: HF-G12 12x100 mm, 32H, Centerlock
- Hub Rear Brand: XLC
- Hub Rear Kind: HR-G12 12x142 mm, 32H, Centerlock, HG
- Rim Brand: XLC
- Rim Kind: WR-G29 SL Disc 25/622 32H 6,5 mm Valve
- Rim Rear Brand: XLC
- Rim Rear Kind: WR-G29 SL Disc 25/622 32H 6,5 mm Valve
- Spoke Brand: DT Swiss
- Spoke Kind: ELEMENTAL 2.0
- Tyre Brand: Continental
- Tyre Kind: Terra Adventure Trail Grip
- Tyre Rear Brand: Continental
- Tyre Rear Kind: Terra Adventure Trail Grip
- Tyre Size Etrto: 45-622
- Wheel Size Front: 28
- Wheel Size Rear: 28
