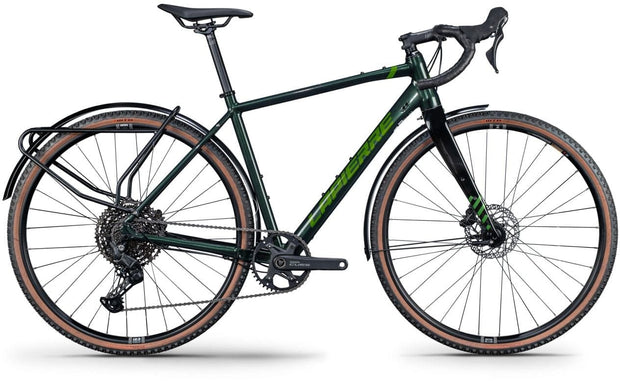

A white trail in the spring and the sudden desire to discover unexplored valleys. The Crosshill gravel bike is more than just a frame: it's a faithful accomplice for cycle touring, bikepacking trips and holidays on two wheels. Where the trails begin, so begins its field of expression, and its multiple facets with it: precise on gravel, stealthy on the road, agile always. Thanks to its endurance-type aluminium frame and its equipment designed for covering distances, the Crosshill is made for adventures. Will you recognise its versatility?

Lapierre Thru axle
bottle opener lever
Tubeless valves

Specifications

Bike Geometry
Bottom bracket drop [mm]	75 mm
Chain stay length [mm]	435 mm
Head tube angle	73° / 72.5° / 72°
Head tube length [mm]	180 mm
Reach [mm]	388 mm
Stack [mm]	547.3 / 605.9 / 636.4 mm
Seat tube angle	70.5° / 71° / 71.5°
Seat tube length [mm]	550 mm
Top tube length [mm]	579 mm
Wheelbase [mm]	11046.8 mm
Brake System
Brake Front Brand	Shimano
Brake Front Kind	CUES BR-U6030, 2 pistons, resin pad, 160 mm
Brake Front Mount	Flat Mount
Brake Front Type	Hydraulic Disc brake
Brake Rear Brand	Shimano
Brake Rear Kind	CUES BR-U6030, 2 pistons, resin pad, 160 mm
Brake Rear Mount	Flat Mount
Brake Rear Type	Hydraulic Disc brake
Drivetrain
Bottom Bracket Brand	Shimano
Bottom Bracket Kind	BB-MT501
Bottom Bracket Type	BSA
Cassette Brand	Shimano
Cassette Kind	CS-LG400-11, HG
Cassette Teeth	11-50T
Chain Brand	KMC
Chain Kind	eGlide
Crankset Brand	Shimano
Crankset Kind	CUES FC-U6040-1 Hollowtech 2
Crankset Teeth	42T
Crankset Type	single
Derailleur Rear Brand	Shimano
Derailleur Rear Kind	CUES RD-U6000 10/11s Shadow+
Gear Brand	Shimano
Gear Type	Derailleur
Number Of Gears	11
Pedal Brand	FPD
Pedal Inclusive	Yes
Pedal Kind	NW-91K steel cage black
Shifter Left Brand	Shimano
Shifter Left Kind	CUES BL-U6030-L Shift-Brake-Lever
Shifter Right Brand	Shimano
Shifter Right Kind	CUES BL-U6030-R Shift-Brake-Lever
Frame and More
Framesize	55 cm
Framesize Convection	L
Max loadable weight	110 kg
Front Fork Brand	Lapierre
Front Fork Kind	Rigid Carbon Fork
Front Fork Type	Non Suspension
Handlebar and Saddle
Handgrip Brand	Fizik
Handlebar Brand	Lapierre
Handlebar Kind	RA-120A, Dia.31.8mm, Drop:130mm, Reach:70mm, Flare:16°
Headset Brand	Fsa
Headset Kind	Orbit 1.5E ZS No. 57E
Saddle Brand	Fizik
Saddle Kind	Terra Argo X7 150mm
Seatpost Brand	Lapierre
Seatpost Kind	SP-37.1, Dia. 27.2 mm, L: 350 mm
Stem Brand	Lapierre
Stem Kind	ST-161A, Dia. 31.8 mm, L: 110 mm, -7°, A-Head
Wheels and Wheel Components
Hub Front Brand	Lapierre
Hub Front Kind	DA212, 12x100mm, 32H, Centerlock
Hub Rear Brand	Lapierre
Hub Rear Kind	DA212, 12x142mm, 32H, Centerlock, HG
Mudguard Front	Curana D45 black
Mudguard Rear	Curana D45 black
Rim Brand	WTB
Rim Kind	STi23 TCS 2.0 700c, 32H
Spoke Brand	Lapierre
Spoke Kind	14G, Dia. 2,0 mm
Tyre Brand	WTB
Tyre Kind	Raddler TCS light, Tan Wall, 700x40c
Tyre Size ETRTO	42-622
Wheel Size Front	28
Wheel Size Rear	28

Code: LCBRA500
