MiRiDER 24 GB3 Compact Step Through Electric Bike

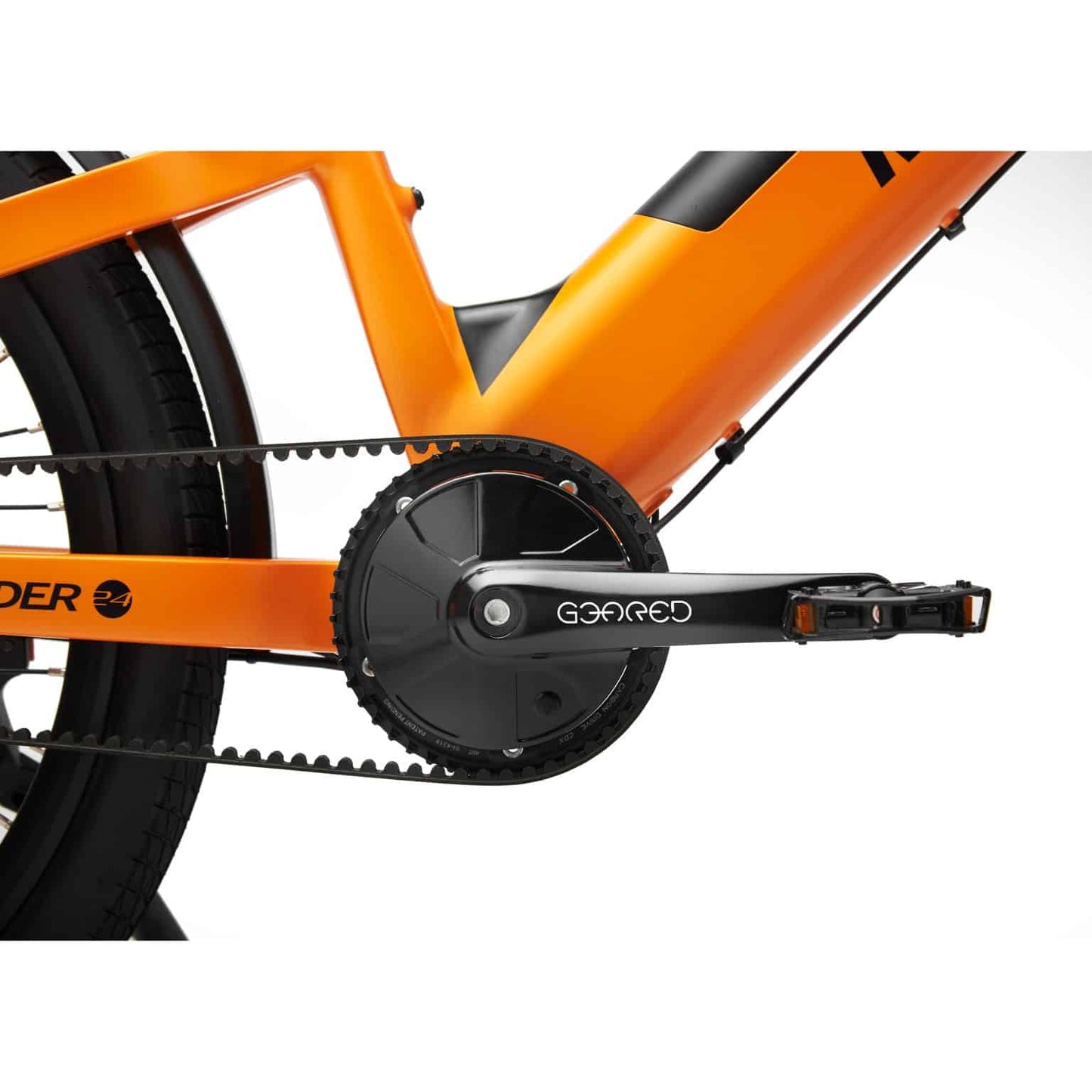

The MiRiDER 24 GB3 features the incredible G3ARED three-speed gearbox with a Gates Carbon Drive belt system for even greater capability. A game changer for ebikes.
Continuing the brand DNA, which meant a fun, lightweight and agile bike which stirred emotions and pushed boundaries. We’ve challenged the mainstream offerings by championing the 24in wheel size which we believe offers significant advantages.
Our enviable MiDRiVETM electric drive system can achieve over 65 miles on a single charge, whilst offering the perfect blend of “boostable” fun. Featuring space saving components, hydraulic brakes, integrated lighting, front and rear carrier points all in a light-weight 21kg package, it’s a real one bike suits all for any journey.
|

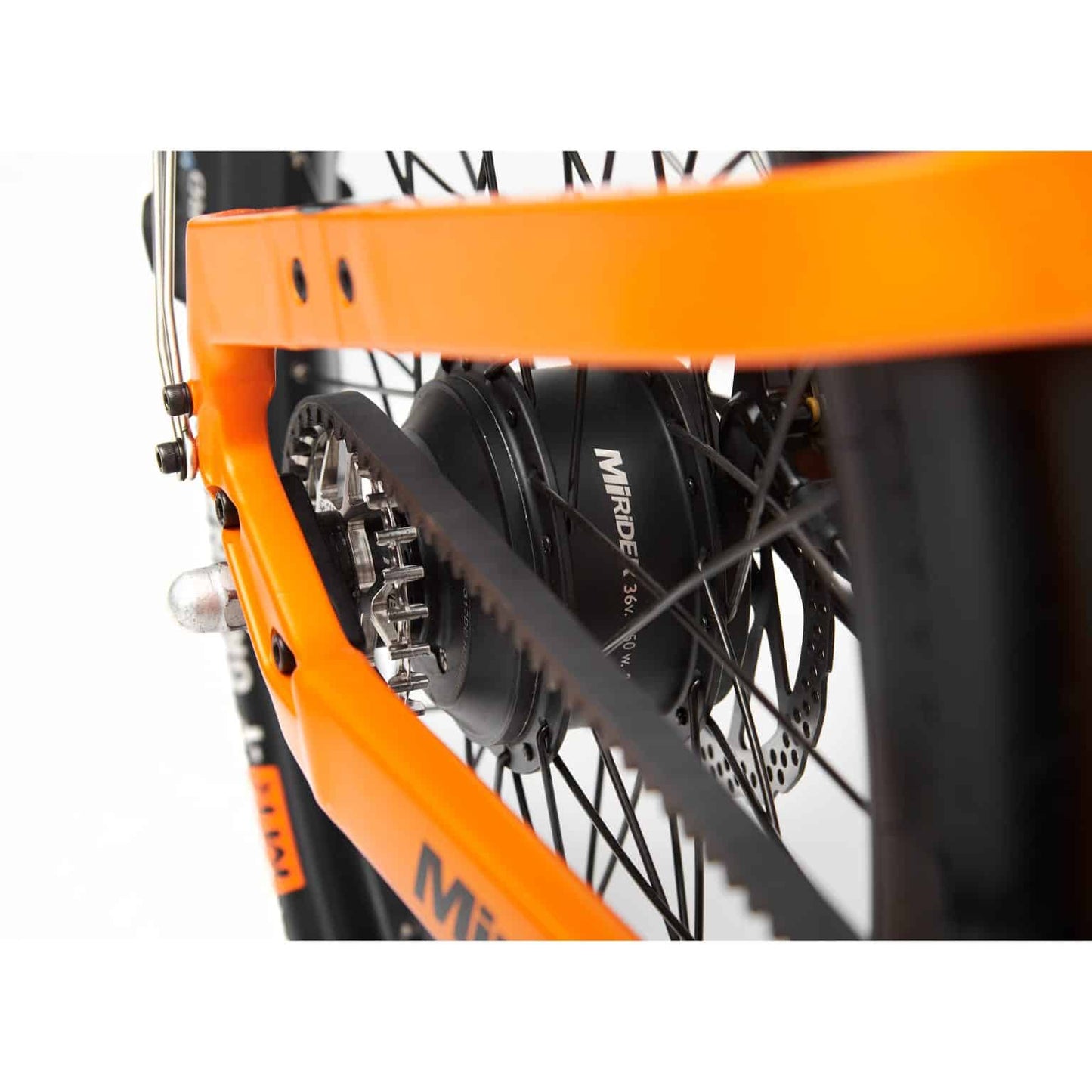

Motor |
MiRiDER Geared brushless silent rear hub motor |
|
Nominal Power |
250 W (UK legal limit) with 45 nm of torque |
|
Pedal Assist Top Speed |
25 km/h or 15.5 mph (UK legal limit) |
|
Battery Type |
Samsung 18650 Lithium-Ion Cells |
|
Battery Specs |
36 v 10.5 Ah / 378 Wh |
|
Battery Features |
Removable and lockable with integrated charge status LEDs |
|
MAX Range |
up to 100 km or 65 miles (based on power level 1, average pace, rider weight and even terrain) |
|
Climbing Angle |
25 degrees maximum (based on average rider weight) |
|
Charge Time |
2-3 hours (using 42 v, 3.0 A UK charger supplied) |
|
Handle Bars |
High rise 60cm handlebars with folding stem |
|
Controller |
KT Sine-wave with Torque Simulation featuring thumb throttle (compliant with all UK legal parameters) |
|
Display |
Horizontal Multi-function LCD colour display |
|
Dash board readouts |
Speed (km/h or mph), distance travelled ODO/trip (miles/km), battery level, pedal assistance level, Led headlight (on/off) |
|
Pedal Assist |
5 levels |
|
Frame/Fork |
Aluminium 6061 |
|
Accessories Included
|
Front/rear mudguards, Front LED light, rear LED brake light, kickstand, warning bell & battery charger. |
|
Folded & Unfolded Dimensions |
1760*330*860 mm / 1760*65*1160 mm |
|

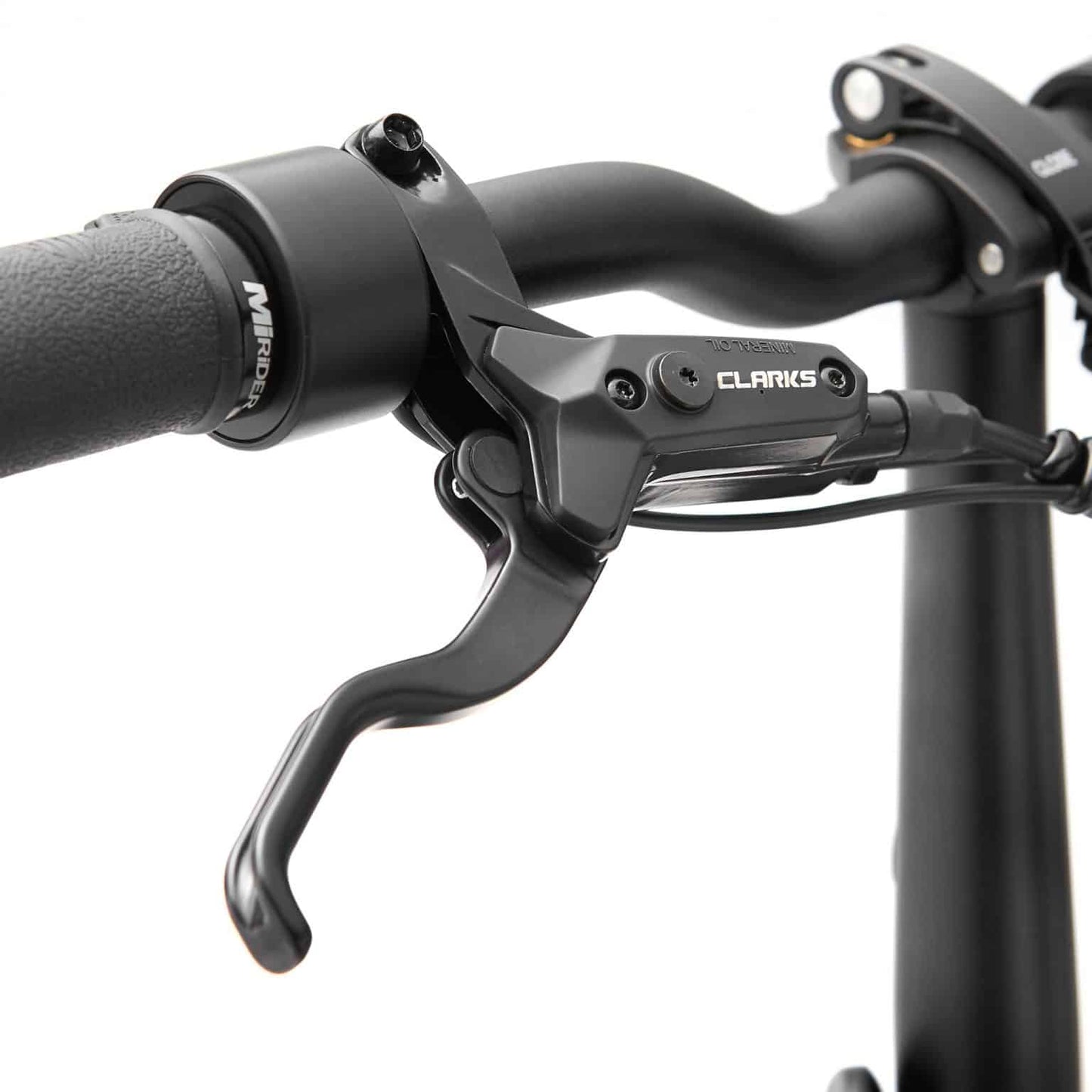

Brakes |
Clarks HD-M3000 160mm 2 piston hydraulic with e-cut outs |
|
Comfort |
Adjustable handlebar rake and telescopic seat stem |
|
Tyres |
MiR-T Original Road 24 x 2.125" with delta guard and puncture fluid |
|
Wheels |
24” with aero rims featuring quick release front hub |
|

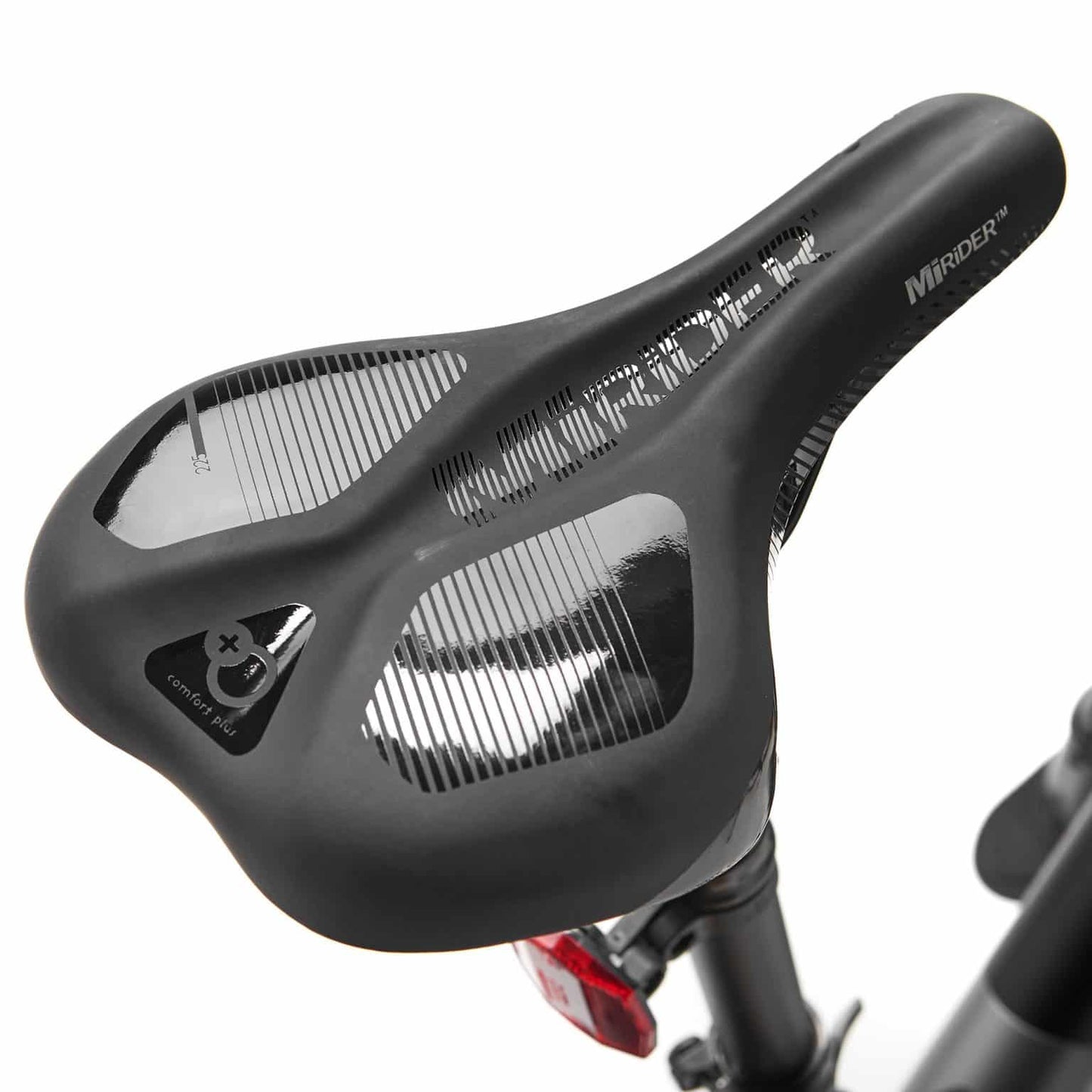

Saddle |
MiRiDER Comfort plus with memory foam |
|
Pedals |
Wellgo metal folding pedals |
|
Belt |
Gates Carbon Drive Commute 118t |
|
Total Approximate Weight Fully Equipped |
21 kg |
|
Maximum Recommended Rider Weight |
120 kg |
|
Rider Height |
152 cm - 195 cm / 5'0 - 6'4 |
|
Road Legal |
Worldwide |
|
Optional Accessories |
Rear 25kg load pannier rack, Front 10kg load carrier rack, Central mounting point for water bottle/pump/tools etc |
Additonal Information
3 speed trigger shifter and Smaller colour display
